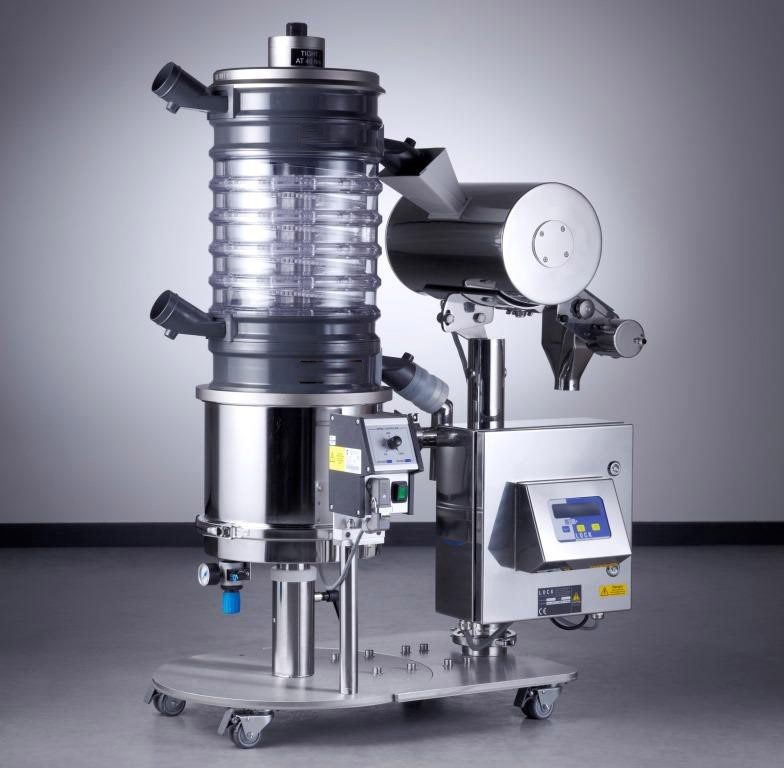

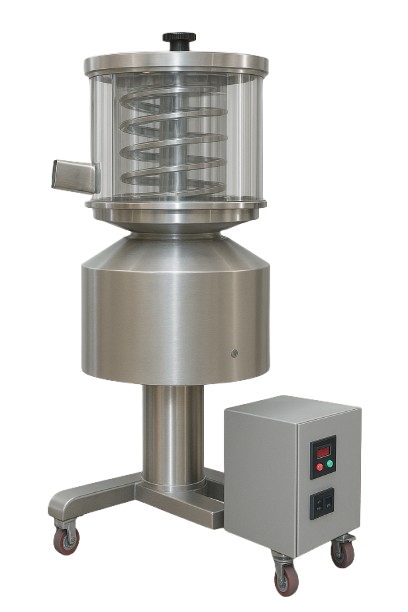

Tablet De Duster
Salient Features
- Completely Stainless steel structure • GMP model with contact parts SS316
- Very easy to clean • Easy to operate • Upward (elevating) movement of tablets
- Efficient De dusting with elevating motion in bottom to top motion suitable for high speed tablet machine.
- Dual motor drive from bottom with vacuum suction pot for collection of dust.
- Acrylic guard for process visualization • De Duster works on the principle of Rotary vibratory action • Single Phase UN Balance Vibro-motor for better vibration amplitude • Variable Frequency Drive based operating panel on the machine for ease of operation
- Very low Electrical power consumption & Very low noise level
- Height adjustment RAM Assembly to adjust the Tablet Press output discharge
- Tablet de-dusting route is geometrically designed as to achieve optimum de- dusting
Technical Specification
| TYPE | De Duster | TYPE | De Duster |
|---|---|---|---|
| innut voltage | 220 V | Castor wheel | 2" size. wheel of PU material |
| 110 V | Power Supply | 220 V 50 Hz / | |
| Motor | 02 nos., 0.25 Hp, 220 V, 3Ph | 110 V 60 Hz. | |
| Tablet runway | 4.5 meter ( approximate ) | Charging spout | 175 mm x 50 mm |
| All contact parts | SS 316 | Charging Height | 710 to 860 mm ( plus 150 mm extension footerce) |
| "U" type ribbon | Silicon rubber | Dis. charging Height | 870 to 1030 mm ( plus 150 mm extension footerce) |
| Acrylic guard | 310 mm O. D. x 5 mm thick | Outout per hour (8mm Tablet) | @ 2.50.000 Tablet / Hr |
METAL DETECTOR (MODE: JTSMD 75)
Introduction
The pharmaceutical industry needs highly accurate metal detection to meet the requirements of demanding consumers and stringent legislation. JTS metal detector provides class leading, online metal detection. The unit is manufactured from stainless steel through out to provide a hygienic easily cleaned inspection. A robust stainless steel reject flap is operated by a high speed electrical solenoid for clean, precise rejection of contaminated product with minimum waste. This metal detector chute can be quickly and easily dismantled for routine cleaning and product changeover. It is especially well suited for high processing speeds and quick product change. The JAYSHREE tablet metal detector is designed for simple adaptation and flexible, efficient operation on the line. The complete unit takes up minimum system length and can be located before or after the de duster.
Salient Features
- High speed reject for positive reject of contaminants.
- Compact frame needs less installation space, easily cleaned, stainless steel finish for easy clean and hygienic design.
- High sensitivity to all metal including the most difficult non-magnetic stainless steel.
- Easily compatible with all tablet press.
- Built in led bar graph to monitor the amount of contamination.
- Performance is maintained stable throughout the life.
Technical Specifications
- Aperture size 75 mm width and 25 mm height
- Detect metal contamination of 0.3 mm Ferrous
- Detect metal contamination of 0.5 mm SS & Non-Ferrous
- Electrical solenoid operated flap type reject mechanism
- All contact part from S.S. 316
- Non contact part from S.S. 304
- Adjustable height up to 1 Mtr.
- Mounted on castor wheel for easy mobility
- Power sudoly 115 V AC 60 Hz single phase
