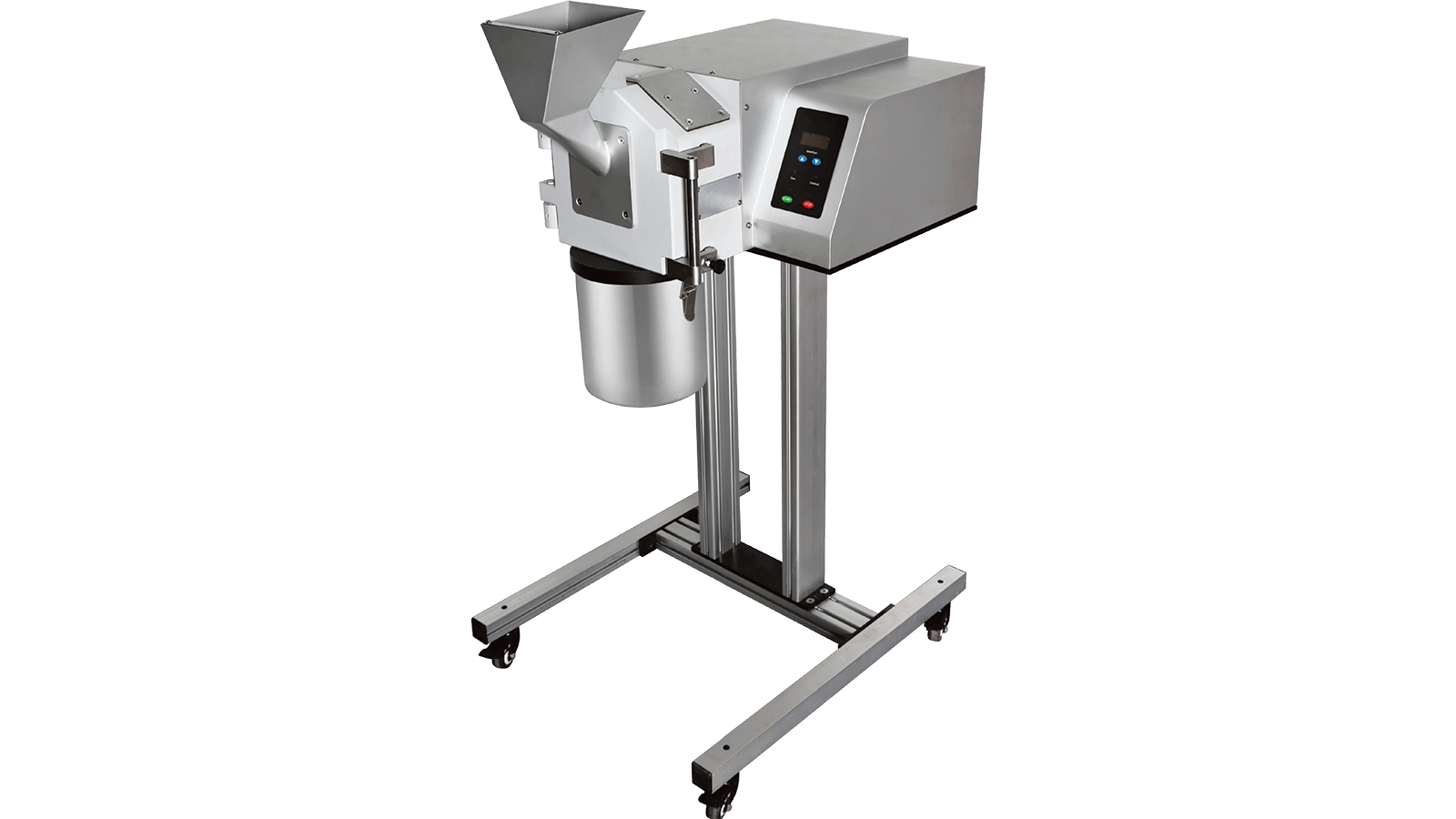

Multimill
Salient Features
- Direction for beaters can be changed by reversible switch.
- All Contact parts can be easily band quickly dismantled and cleaned.
- Cylindrical screen for higher output.
- Castor Wheels provided for mobility.
- Beaters & Scrapper blades of S.S. 304 / 316 Quality.
- Flame Proof electrical components can be provided at extra Cost.
Technical Specification
| TYPE | MULTIMILL MACHINE |
|---|---|
| Output* | 50 Kg. to 200 Kg. / hr. (Depending upon the product and reduction required in size) |
| Rotor Assly. Dia. | 250 mm (approx.) |
| Rotor Speed | 750 / 1500 / 2300 / 3000 RPM |
| Beaters | 12 Nos. with knife & 2 Nos. impact edges Scraper blades |
| Screen Dimension | Dia. (ID) 260 mm X (HT) 135 mm |
| Motor | 3 H.P. / 1440 RPM / 3 Ph. |
| Starter | DOL with Reversible Switch |
| Material Charging Ht. | 1445 mm (approx.) |
| Overall Dimension | 870 mm X 965 mm X 1630 mm (Ht) |
| Case Dimension | 1000 mm X 1150 mm X 1860 mm (Ht) |
| Net Weight | 275 Kgs (approx.) |
| Gross Weight | 425 Kgs (approx.) |
JTSVS VIBRO SHIFTER (SIEVING, GRADING & STRAINING MACHINE)
Salient Features
- Floor Vibration is nil which keeps the machine steady.
- All Contact part and screen made of S.S. 304 / 316 quality.
- Easy dismantling and cleaning facility for contact parts.
- Noiseless, Maintenance free & High Speed Model.
- Electric Power requirement less than other Machines. Of the kind in the industries & lower energy consumption compared to reciprocating vibratory system.
- Double & Triple deck screens with outlet and hopper for bottom deck available on request.
Technical Specification
| TYPE | JTSVS20” | JTSVS30” |
|---|---|---|
| MOTOR | 0.5 H.P. / 1440 RPM | 0.5 H.P. / 1440 RPM |
| CHARGING HEIGHT** | 750 mm. | 1250 mm. |
| DISCHARGING HEIGHT** | 550 mm. | 880 mm. |
| SCREEN DIAMETER | 510 mm. | 750 mm. |
| CAPACITY / HOUR* | 20 TO 100 Kgs. | 30 TO 300 Kgs. |
JTSCM COMMUNITING MILL
Salient Features
Designed to suit high speed milling needs with plain, water jacketed and flame proof options. • Fully S.S. cladding on base & S.S. guards for all moving parts to meet GMP needs. • Motor rails, screw and guide rods are chrome plated.
Beater assembly bearings are housed in separate pillow blocks for ease in maintenance. • Dynamically balanced fixed beater assembly as standard supply. Minimum downtime required to change direction. • Fabricated to work long with very low heat, vibration & noise generation. • Castors provided for mobility.
Technical Specification
| TYPE | JTSCM |
|---|---|
| Rotor Speed | 1000-2250-4500 RPM |
| Blades | Swinging type with knife and impact edge. |
| Screens | Round hole perforated stainless steel sheet. |
| Electric Motor | 7.5 H.P, 1440 RPM, 3 Phase. |
| Overall Dimensions | 690 (L) x 1270 (W) x 1700 (H) mm. |
| Net Weight (Approx.) | 310 Kgs. |
| Output (Kg / Hr.)* | 25 to 300 (Various according to product, rotor speed & screen) |
