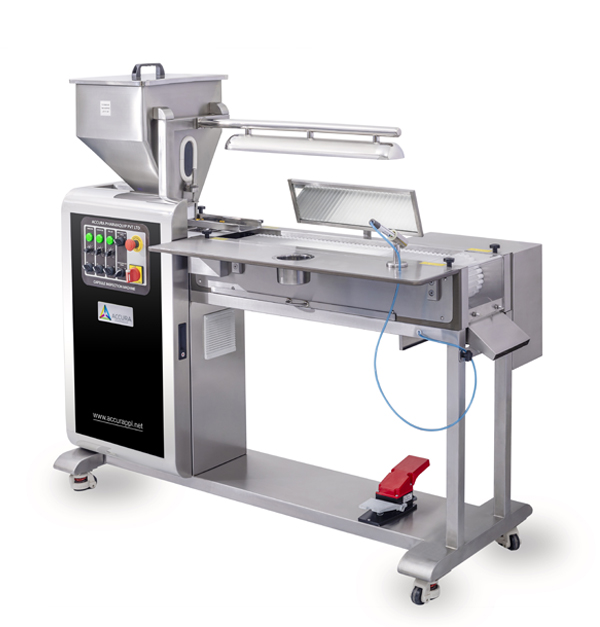

Tablet & Capsule Inspection Machine
Salient Features
- 360 Degree Inspection on of Tablet & Capsule.
- As per GMP Standard.
- Foot Switch provided for stopping machine.
- No change parts required for various shapes and sizes of tablets / capsules.
- Food grade material used for plastic and rubber components
- The unit is mounted on Caster wheel.
- 0.25 H.P. Geared motor for Both Conveyor & Roller Drive with Regulator.
- Vibrator with Regulator.
- LED Lamp for visual Inspection.
- Inspect up to 1.5 Lac Tablet / Capsule per Hour*.
DIES & PUNCHES
- Made from quality tool steel like OHNS or HCHC.
- Most Modern manufacturing techniques ensure highest life of the Tooling
- We can provide tools for all kind of Tablet Press.
- We Design & Produce any Size of Tablet Tooling.
DIE & PUNCHES STORAGE CABINET
Outstanding Feature
- Vertical Holding of Punch.
- Separate space for Die.
- Label space in each Drawers.
- Drawer available 8,10, 12, 16,20 or as per your requirement.
- Suitable for both Tooling D, B & BB.
- Material of construction M.S. / S.S.
- Telescopic channel mounted drawers.
- Also available Tray type model.
DIGITAL PORTABLE TABLET HARDNESS TESTERs
Salient Features
- Hardness Measurement By Load Cell Up To 500 Newtons
- Units Of Measurement In N, Kgf And Lbf
- PC Connectivity / Printer Connectivity Through RS232 Port
- Programmable Upper (T1) And Lower (T2) Tolerance Limits
- Peak Hold And Auto Release Function
- Green And Red Light Indication For Better Understanding
- Memory Of Upto 10 Testing Data
- Automated Semi-Calibration (Zero-Point Adjustment)
- Display Of 10 Test Value And Calculate The Average Of The Memorized Value.
- Automatic Power Off Function
- Acrylic Glass Safety Cover With Disposal Container
- Tester Operates On Rechargeable Battery
Technical Specifications: Model JTSTMT-500
- Capacity : 500N / 50kgf
- Resolution : 0.1N
- Accuracy : + 0.5%
- Tablet Range : 2 - 28 mm
- Display : LCD with Backlight
- Interface : RS-232
- Standard Accessories : DC Power Adaptor, Cleaning Brush, UserManual, Storage & CarryCase
- Gross Weight : 5 kg
