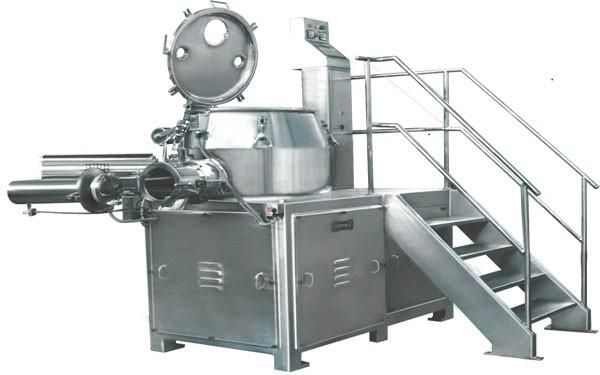

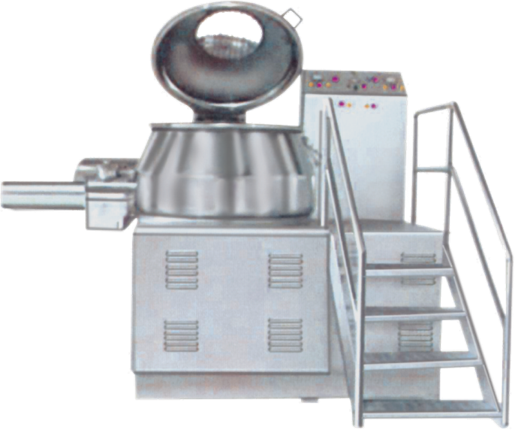

Rapid Mixer Granulator

Rapid Mixer Granulator

Working Principle

The RMG working principle is based on 2 decisive factors essential for the mixing systems.

Spinning close to the bottom of the mixing bowl.

The impeller sets the entire mixture in a whirling-rising tumbling motion ensuring a quick and even distribution of all dry components which leads to an even distribution of all dry components which leads to an even wetting of every granule. The large lumps occurred during wet mixing are broken up, by the strategically located chopping tool rotating at 1440/2880 RPM. The mix can be discharged with the impeller running through t he outlet located on the side of the mixing bowl flush to the bottom. Easy accessibility for cleaning is guaranteed by the low profile. The mixing tool is easily removed from the drive shaft providing an unobstructed mixing area which may be cleaned very easily.

Mixing Bowl

Dome shaped processing bowl which directs loose particles into whirling motion with the help of impeller.

Impeller consists of 2 full and 2 half solid mixing blades.

Inclination of the mixing blades accelerates rising and tumbling motion of the product in the bowl.

Specially designed chopper blades driven at high speed gives fast and even granulation, throughout the whole mass in the product bowl.

For easy accessibility in cleaning the side discharge assembly is provided with hinges.

Technical Specification
