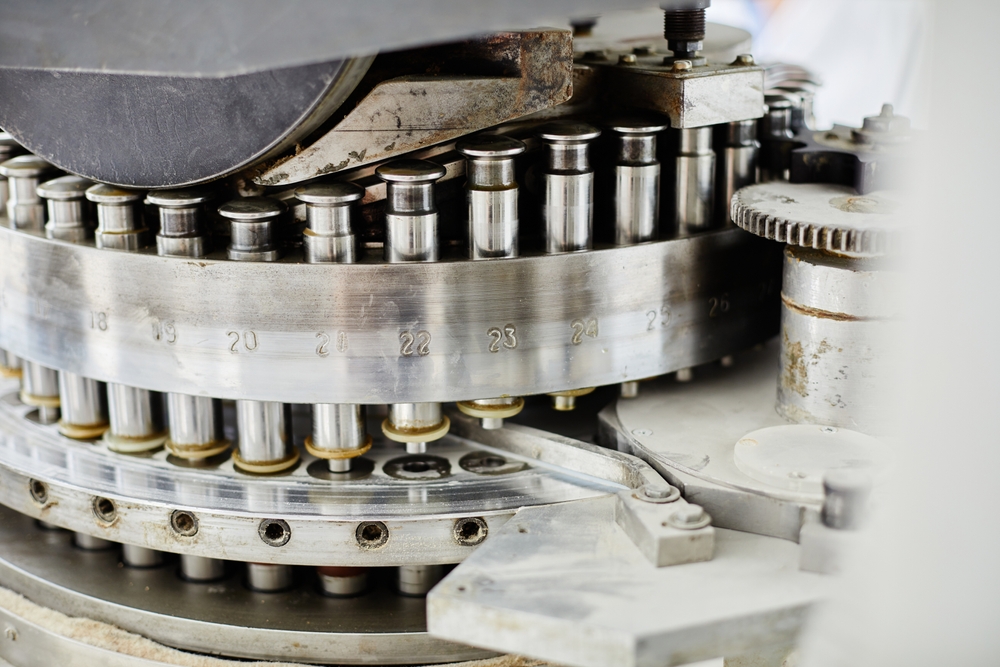

R & D Tablet Press
JAYSHREE MINI PRESS is a R&D tablet press designed to simulate two-layer tablet production on a pilot/small scale.
It is available in 9D, 11B & 10DB (5D & 5B) configurations.
Standard Features
- CGMP model with contact parts 55 316
- Central pillar drive through an oil-immersed reduction gearbox
- Gravity feeding system & pre-compression System
- 3 Piece turret with SS 316 die table (upper & lower piece with ELNP coating)
- PLC with HMI controls
- Mono layer tablet attachment
- First layer sampling device
Optional Features
- Main, pre compression & ejection force monitoring System
- Compaction Force Control system (CFC System)
- Force feeding system with ACVFD
- Turret with HCP Die table
- Various depth of fill lower cam tracks
- Turret with lower punch key way
The ideal output of the machine is maximum upto 23000 tablets/hr.

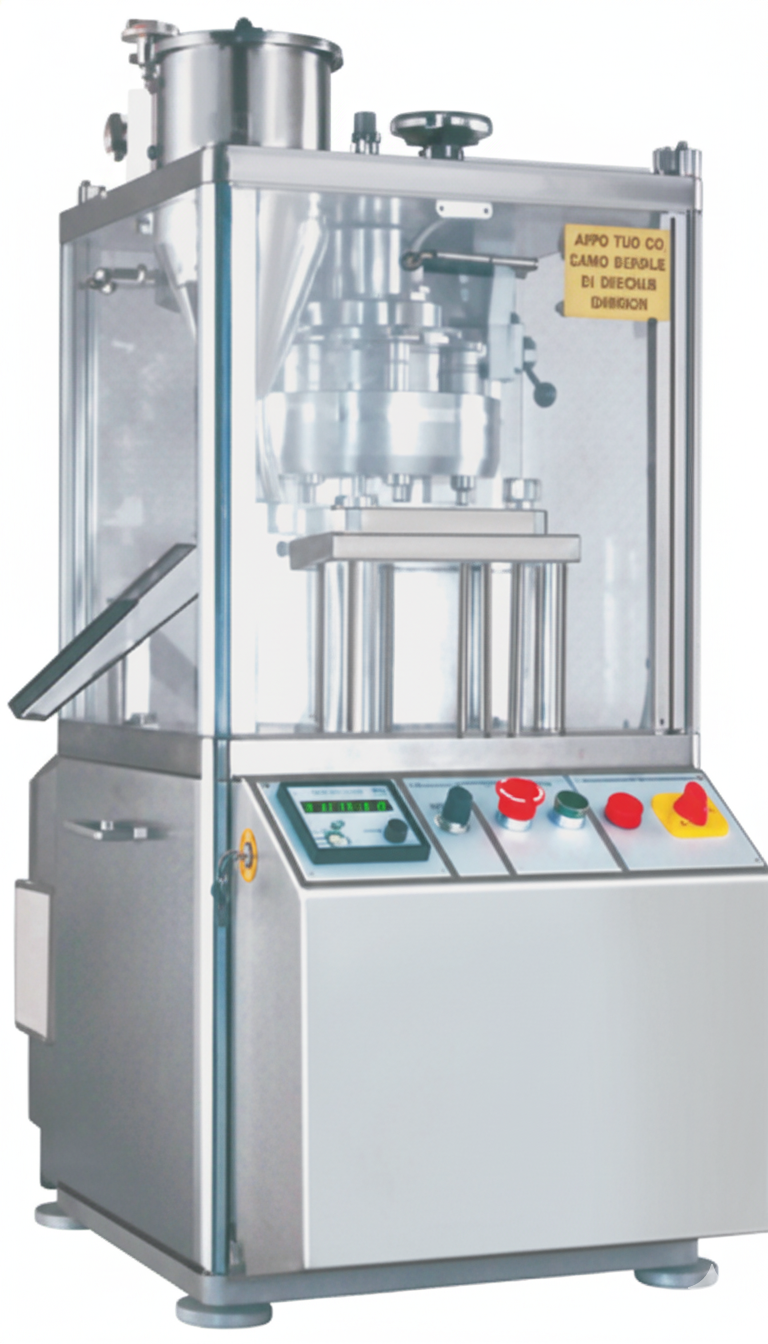

JTD 3 SINGLE ROTARY TABLET PRESS
Salient Feature
- In Compliance with cGMP Guidelines.
- Rigid and Robust standard design machine.
- Variable Speed through VFD.
- Maximum Output 45,000 Tablet / hr.
- Maximum Operating Pressure 10 Tons.
- Easy to operate, clean and maintenance.
- Supplied with Round Base Body.
Optional Feature
- PLC with HMI Controls
- Also available outside controls
Technical Specification
| TYPE | JTD3 | ||
|---|---|---|---|
| Station | 16 | 20 | 23 |
| Tooling | 'D' | 'D' | 'D / B' |
| Outout Tab. / Hour* | 28.000 | 35.000 | 45.000 |
| Max. Dial | 23 mm | 23 mm | 16 mm |
| Max. Depth of filll | 20 mm | 20 mm | 20 mm |
| May onerating Pressure | 10 tons | 10 tons | 10 tons |
| Electrical Power | 2 HP. /3 ph., 960 RPM, | 2 HP. /3 ph., 960 RPM, | 2 HP. /3 ph., 960 RPM, |
| Overall Dimensions (mm) | 980 x 1120 x 1820 (H) Approx. | 980 x 1120 x 1820 (H) Approx. | 980 x 1120 x 1820 (H) Approx. |
| Net Weight | 1000 Kas. Approx. | 1000 Kas. Approx. | 1000 Kas. Approx. |
| Gross Weight | 1200 Kgs. Approx | 1200 Kgs. Approx | 1200 Kgs. Approx |
