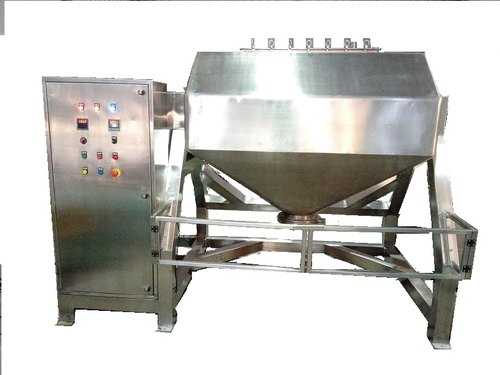

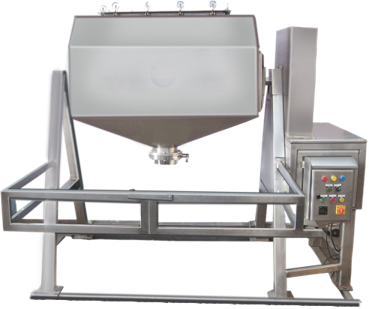

Octagonal Blender
Salient Features
- Suitable for dry mixing of products in granule form.
- Easy for Loading and Unloading of Material.
- Easy for Cleaning.
- All contact parts are made out of S.S. 304/S.S.316 Quality material, as per customer requirement.
- The octagonal shape & slow speed of rotating gives sufficient continuous movement to the granules, result in good quality.
- Simple design requires minimum maintenance.
- General structure & safety guards made out of mild steel & colored in standard Model and made out of S.S. 304 & Polished to the matt finish in GMP Model.
- Maximum Care has been taken to ensure safe operation of the unit.
- Manual rotating facility with hand wheel for inching.
- Bigger size batch at lower power consumption.
Technical Specification
| TYPE | 100 | 250 | 335 | 500 | 950 | 1200 |
|---|---|---|---|---|---|---|
| Cap in kgs | 100 | 250 | 335 | 500 | 950 | 1200 |
| Cap in ltrs | 300 | 750 | 1000 | 1500 | 2800 | 3400 |
| Gross volume | 375 | 875 | 1150 | 1700 | 3500 | 4000 |
| Motor | 1.5 | 3 | 5 | 5 | 7.5 | 10 |
| Gear box | 2.5 | 3.5 | 4.0 | 5.0 | 6.0 | 7.0 |
| Discharge valve | 150 | 200 | 250 | 250 | 300 | 300 |
| Overall dimensions L x W x H Approx. |
2165 x 1535 x 2585 | 2300 x 1850 x 2800 | 2700 x 2100 x 3050 | 2850 x 2525 x 3120 | 2800 x 2900 x 3500 | 2900 x 3000 x 3700 |
V BLENDER
Operation
The "V" BLENDER is an efficient and versatile blending machine for mixing and lubrication process of dry powders homogeneously. Approximate two third of the volume of the Blender is filled to ensure proper mixing. The "V" Blender gives best result for powders due to suitable medium speed and "V" shape of container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc...
Salient Features
- Suitable for dry mixing of products in powder form.
- Easy for loading and unloading.
- Easy for cleaning.
- All contact parts are made out of SS304 / SS316 or SS316 L quality material, as per customer requirement.
- Simple design requires minimum maintenance.
- General structure & safety guards made out of mild steel & painted in Standard Model and made out of S5304 & polished to the matt finish in GMP Model.
- The "V" shape gives sufficient contineous movement to the granules, result in good quality.
- Maximum care has been taken to ensure safe operation of the unit.
- Manual rotating facility with hand wheel for inching.
Optional - (will be provided on extra cost on your demand)
- Contact parts made out of SS316 of Ss316 L instead of SS304.
- Flame proof drive motor along with flame proof starter.
- Vacuum loading facility for material charging.
- VFD for variable speed of cone.
- Intensifier (agitator system)
- Ask for technical detaill
